- Android interface on our superior positioner design.
- Intuitive operation, fraction keys, infinite hotkeys.
- Send cutlists over WiFi or create on-screen.
- Uses the same linear bearings found on CNC machine tools.
- Near zero backlash planetary gearhead & drive pulley.
- 5 Year Belt Warranty.
- Available in any stroke up to 60’.

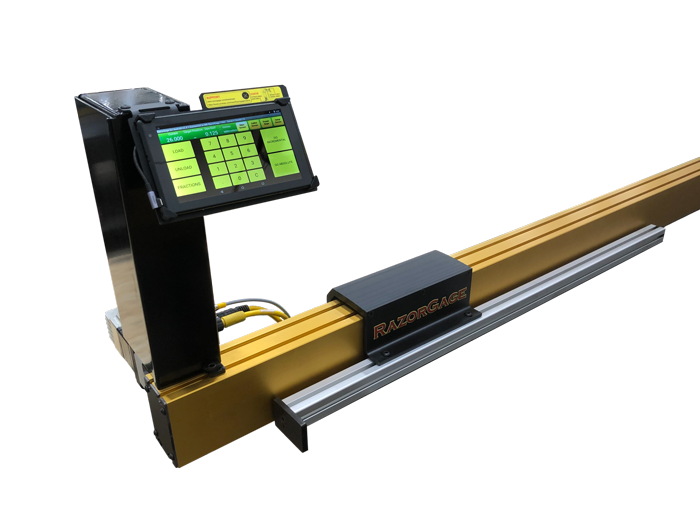

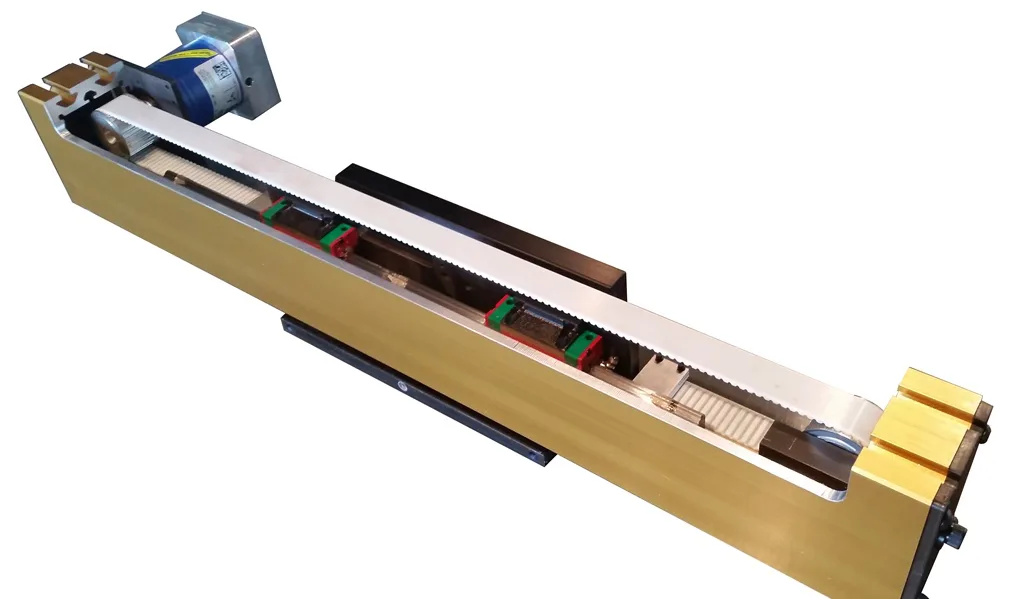

RAZORGAGE ST-A AUTOMATIC SAW MEASURING SYSTEMThe RazorGage ST-A Automatic Saw Measuring System is an automated, programmable saw stop with a hi-resolution touchscreen Android interface that enables fast, easy and intuitive operation. The saw stop and pusher capabilities for the ST-A are controlled with a streamlined user-friendly Android tablet interface. This tablet can store thousands of cut lists, and it has simple, intuitive menu screens and options. The ST-A programmable saw stop features a high-performance motion controller that reacts quickly to jambs, eliminating stretched belts. This machine comes with a 5-year belt warranty. The carriage assembly features a Hiwin hardened and ground linear bearing rail with two recirculating ball bearing blocks. This enables nearly friction-free motion, maximum rigidity, accuracy and long life. The RazorGage ST-A can be used for automatic miter saw measuring, or it may be installed for use alongside any types of saws. When looking to improve the output and efficiency for your operations, the RazorGage ST-A Automatic Saw Measuring System offers the highest degree of accuracy, repeatability and long-lasting dependability. Learn more about the superior hardware used in the construction of the RazorGage ST-A Automatic Saw Measuring System.
- Accuracy: ±.004” over 12 feet if calibrated with a capable measuring device.
- Repeatability: 001”
- Push Force: 200 lb at 10 ips
- Max Speed: 55 ips
- Power Reqd: 120 VAC / 10 Amps
- Interface: 8” Touchscreen
- Networking: Wifi
- Operating System: Android
- Length: Available in 4 - 60 Foot Stroke

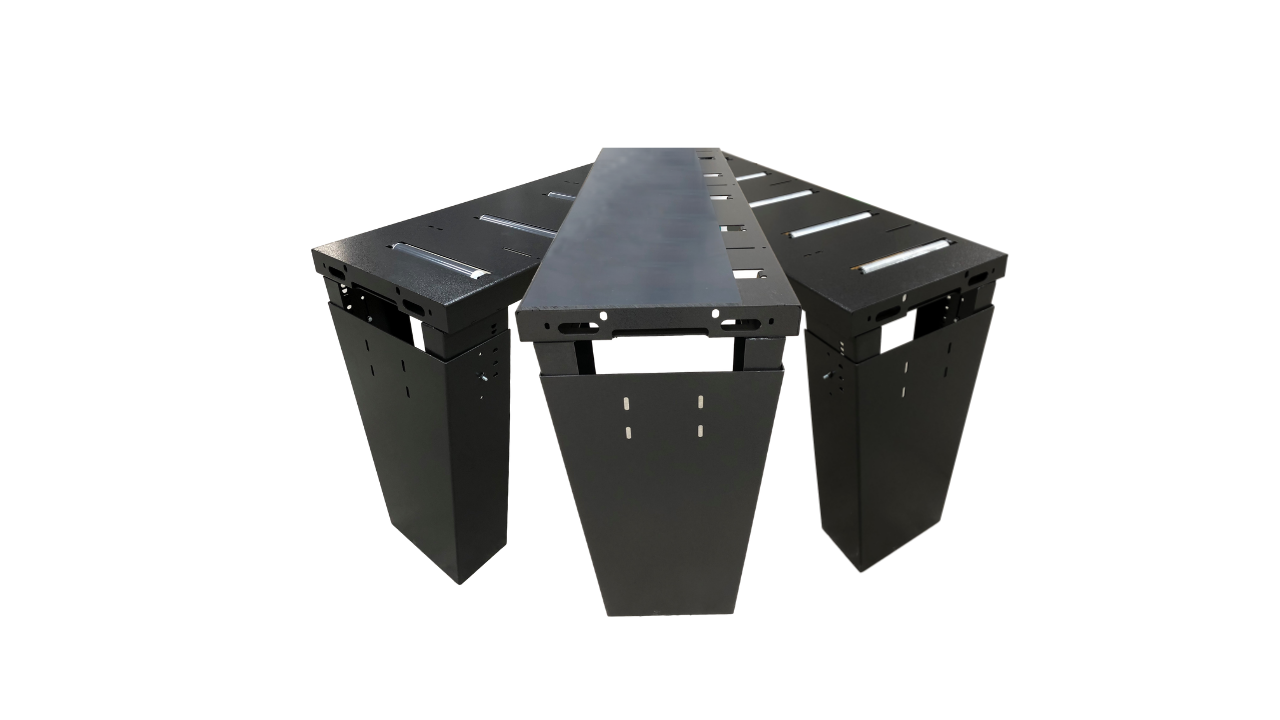

- Table Options (adjustable eight, different finishes…)

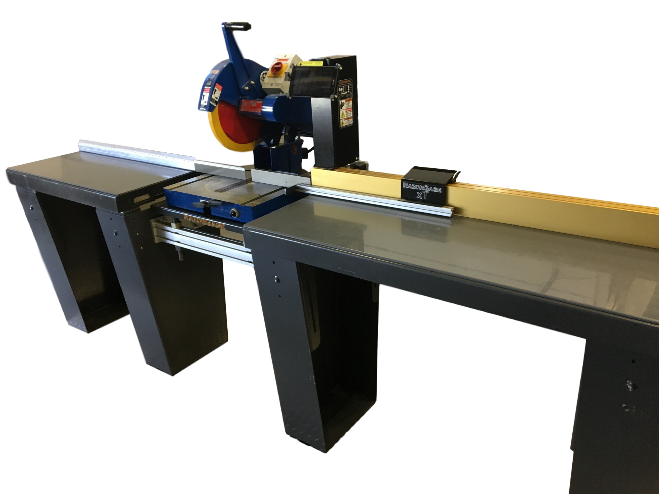

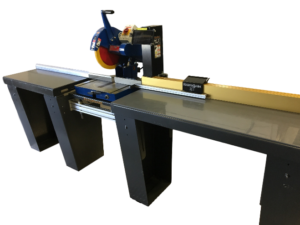

- Chop Saw Table

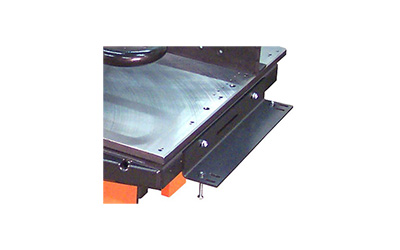

- Table Attachment Bracket

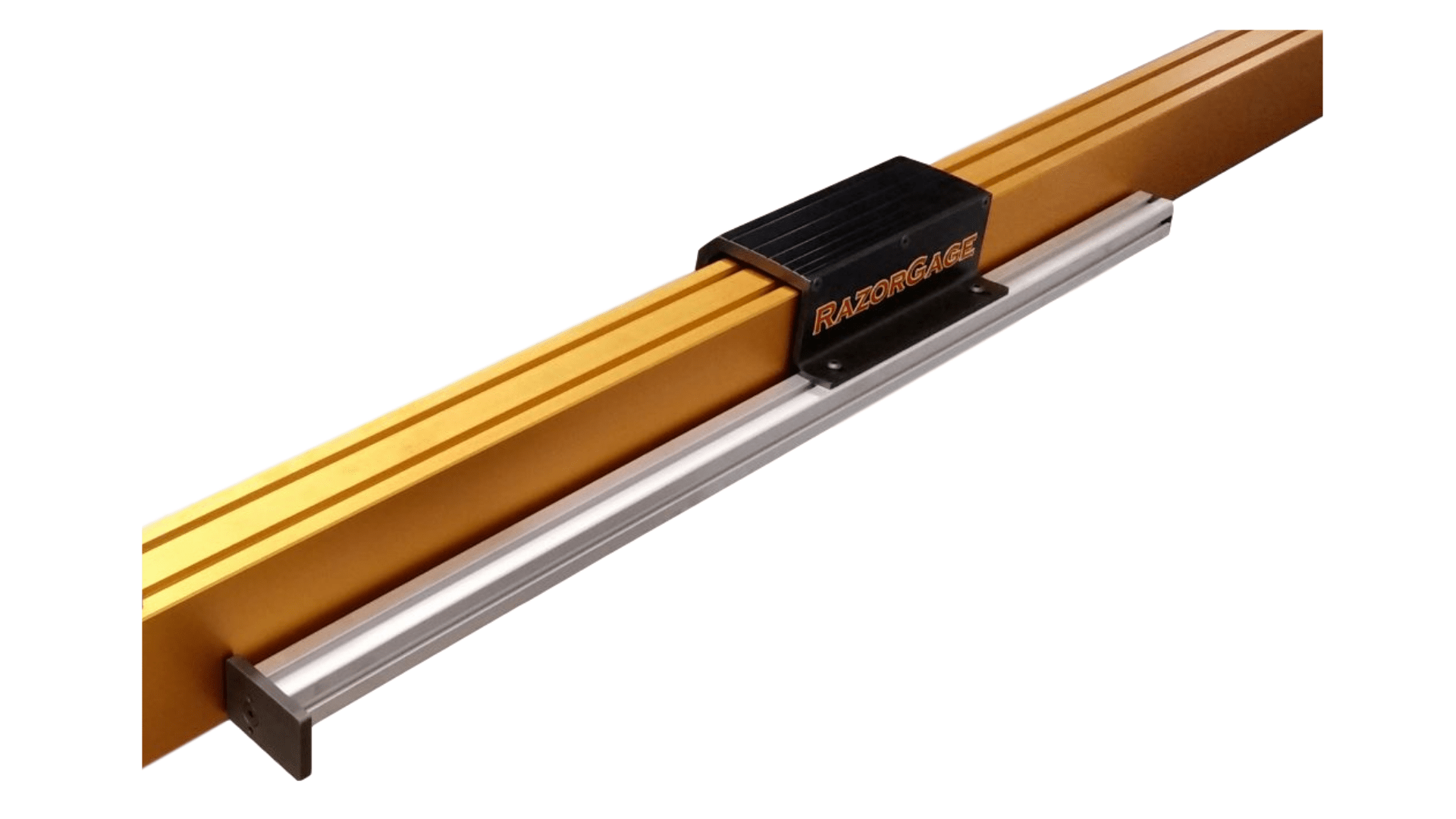

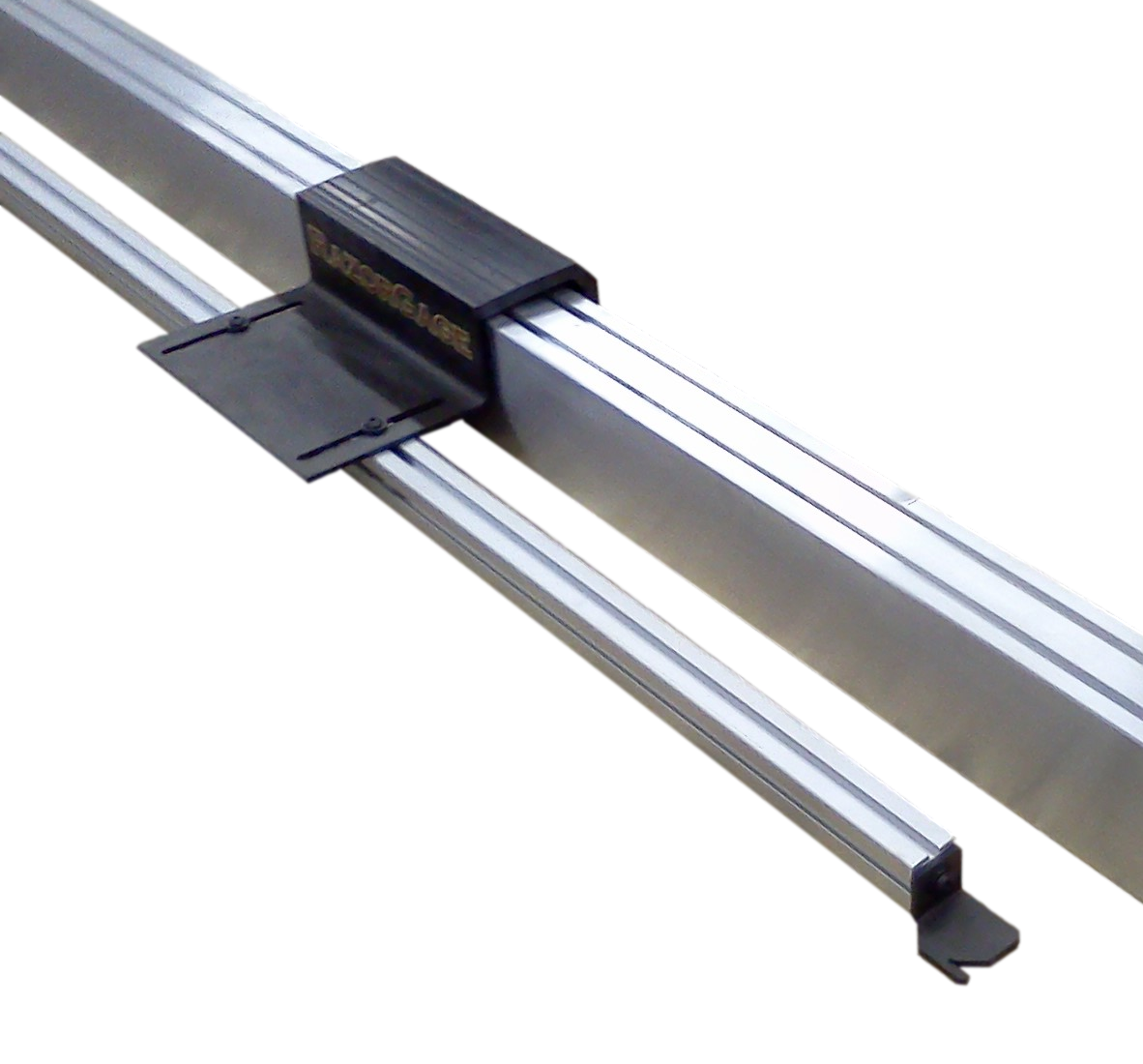

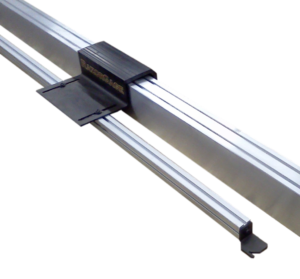

- Basic Stop Extension (bse)
